6 Tile to Carpet Transition Options for a Perfect Flooring Transition

Table of Contents

tile to carpet transition options

Floor transitions are an often overlooked but critical aspect of home remodeling. Among the many floor transition programs, the intersection of tile and carpet is particularly complex and challenging.

There are significant differences in material, height, and texture. The tile is hard and flat, while the carpet is soft and fluffy. How do you achieve a natural, seamless transition between the two while maintaining aesthetic appeal, comfort, safety, and durability?

This article will help you understand the transition from tile to carpet and the best transition options.

what is tile to carpet transition

What is tile to carpet transition?

Tile to carpet transition refers to the point on the floor where the edges of tile and carpet meet, using some method to allow the two materials to join smoothly, preventing falls or trips and ensuring an overall aesthetically pleasing appearance.

Common transition methods include the use of Z-transition strips or beveled edge transition strips, which allow for a smooth transition from tile to carpet. This is done to provide a more natural and secure joint between the two flooring materials.

The Best Tile to Carpet Transition Options

In every tile project, two different flooring materials end up bumping into each other. In most cases, there is a simple solution. Different types of transition strips are best suited for different situations.

For example, T-strips are perfect for floors that are the same height. However, when carpet and tile meet, there are even more options for transitioning from carpet to tile.

To successfully transition from carpet to tile, you need to understand the characteristics of each of the following options and choose the one that works best for you.

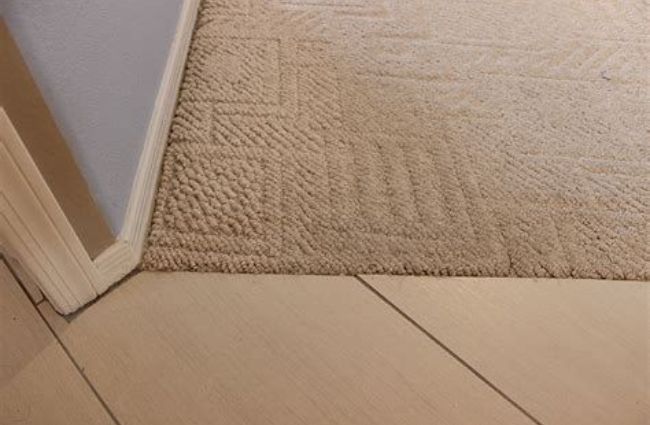

The Tuck-In Method

the tuck in method

This is a common and economical tile to carpet transition option for residential and light commercial settings.

This method does not require you to use transition strips, but only through steps such as cutting the edge of the carpet. Tucking the edge of the carpet right into the seam of the two flooring materials creates a clean, neat, seamless transition look.

Below is a video of the basic steps of the Tuck-In Method:

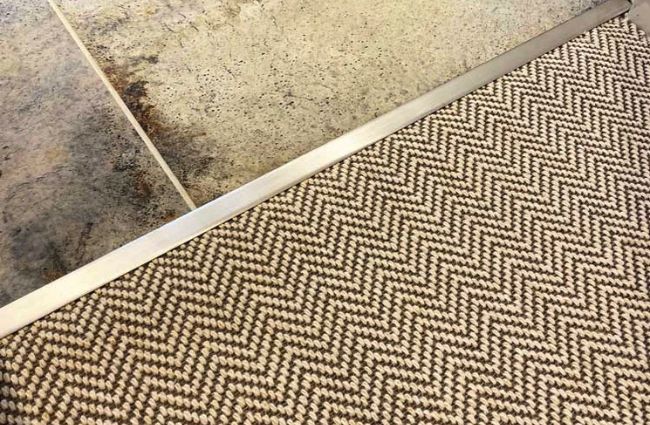

T Transition Strip

t transition strip

When tile and carpet are at the same height, the T Transition Strip is one of your ideal transition options. This transition bar has a “T” shaped cross section that allows it to easily slot into the gap between tile and carpet and creates a smooth transition surface above. The lower portion of the transition strip has a groove to accommodate the edge of the carpet, allowing the carpet to be securely fastened underneath the transition strip.

Installation is extremely simple, as the upper ends of the T-transition bar are attached to the tile and carpet surfaces by means of adhesives, snaps, etc. No cutting or grooving of the tile is required.

T Transition Strip are available in a variety of colors and styles to match the color and texture of your tile and carpet.

Threshold Transition Strip

threshold transition strip

Threshold transition strips are an ideal transition option between tile and carpet for two different spaces and are commonly used in doorways, aisles and other areas.

Not only does this transition strip effectively cover the gap between the two flooring materials, it prevents dirt, moisture, etc. from seeping underneath the floor, thus extending the life of the floor. At the same time, the transition strip can also withstand a certain amount of pressure and wear and tear, to protect the edge of the ground from breakage.

Threshold transition bars can be customized in width and height to fit different transition areas. The right size not only provides a comfortable, smooth walking experience, but also avoids safety hazards such as tripping or unevenness.

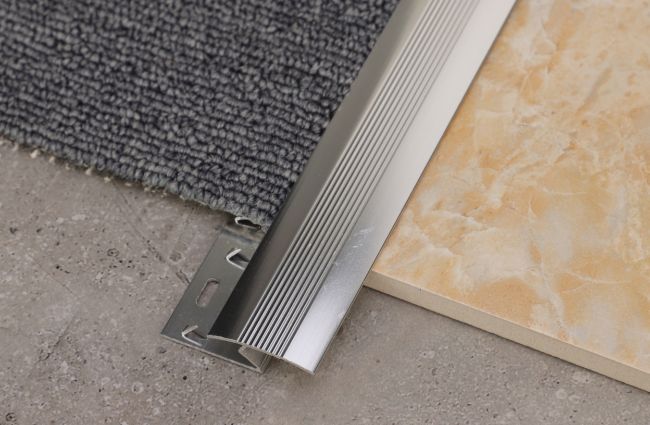

Z Bar Transition Strips

z bar transition strips

Z Bar Transition Strip is designed for transitioning between tile and carpet. Its unique Z-shaped cross-section allows you to use it for different tile and carpet heights, covering both tile and carpet at the same time. It is usually made of metal (such as aluminum or stainless steel) for high durability and stability.

The upper portion of the Z-bar transition is flush with the tile surface, providing a smooth, non-slip stepping area. The lower part has two grooves, the hooked side of which hooks onto the edge of the rug to prevent it from shifting. The other side conforms to the edge of the tile.

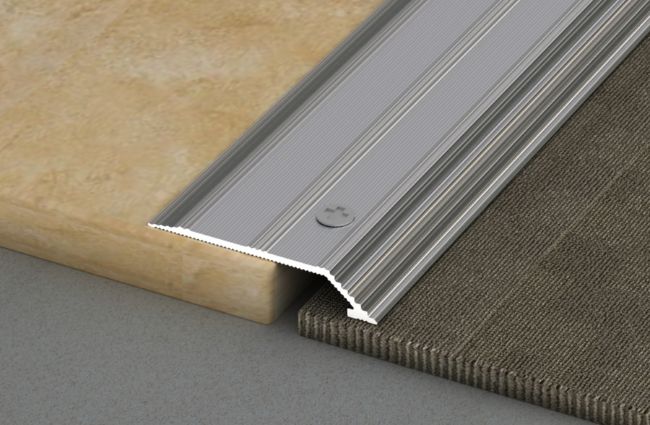

Reducer Strips

reducer strips

If there is a large height difference between the tile and the carpet, I recommend that you prioritize the use of beveled edge transition strips.

This transition strip creates a gradual downward-sloping speed bump between the tile and the carpet, providing a seamless transition to the carpet that is both beautiful and functional.

These transition strips are usually made of metal and can withstand the wear and tear and stress of everyday use.

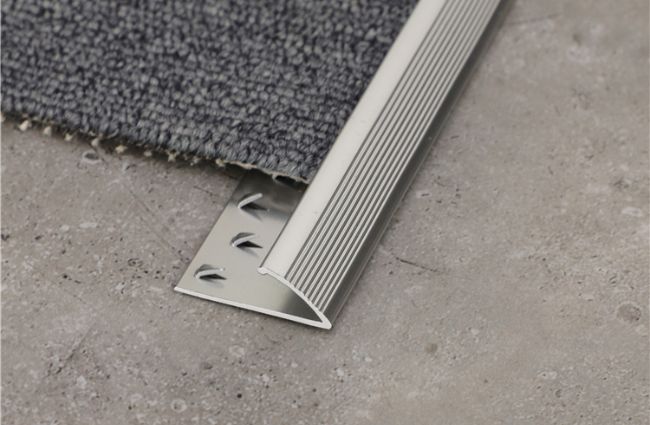

Carpet Gripper With Teeth

carpet gripper with teeth

When you want to add a carpeted area to a piece of tiled flooring, this transition strip is perfect for you. It grips the edge of the carpet with sharp teeth to hold it in place and prevent the carpet from sliding or moving. Also, the carpet grabber with teeth comes with adhesive tape on the bottom to adhere to the floor.

In addition, this transition strip also helps prevent the edges of the rug from fraying or falling apart over time.

How to Transition from Tile to Carpet?

how to transition from tile to carpet?

1. Measuring and planning

First, you need to measure the height difference between the tile and the carpet. Based on the measured height difference, choose the right transition strip.

2. Preparation of materials

Purchase the required lengths of transition strips based on the measured installation area and select materials that match the color and style of the tile and carpet. Also prepare the tools needed to cut and install the transition strips, such as saws, drills, screws or adhesives.

3. Installation of transition strips

Cut the transition strips to the length needed for the transition, position the strips where the tile and carpet meet, and then follow the manufacturer’s instructions when installing them. If you are unsure, consult a flooring professional to ensure the best results.

4. Ensure smooth transitions

After installing the transition strip, you need to check that the transition is smooth to ensure there are no height differences to prevent tripping.

5. Finishing and cleaning

If necessary ensure that all screws are properly tightened and that there are no protrusions from the edges of the transition bar. Also, clean up any debris and dirt created during installation.


Have you gained an in-depth understanding of tile to carpet transitions through the above? Whenever you do, you are welcome to contact us to discuss more about tile to carpet transition knowledge.

FAQs about Carpet To Tile Transitions

Why do I need a transition layer between carpet and tile?

Transition layers are needed to protect the edges of carpet and tile from wear and tear, prevent tripping hazards, and provide a neat, attractive appearance.

How do I choose the right transition strip?

Consider the height difference between carpet and tile, foot traffic, and your décor. Also, make sure the colors and materials complement both types of flooring.

Can I install my own transition strips?

Yes, you can install transition strips yourself with the right tools (e.g., a saw to cut the strips, adhesive or screws to hold them in place) and a little DIY skill.

Do the transition strips come in different colors?

Yes, transition strips come in a variety of colors and materials, including wood, metal and rubber, to match or complement different floors.

How do I clean the transition area?

Clean the transition strips with the same products you would normally use on your floor, but avoid harsh chemicals that may damage the transition strip material.
