The Ultimate Stair Nosing Guide: Types, ADA & Installation

At NIUYUAN Trims, we’ve seen too many perfect staircases ruined by one detail: the edges. Choosing the wrong stair nosing isn’t just an aesthetic mistake—it leads to slip-and-fall liabilities, failed safety inspections, and costly early replacements.

Whether securing a commercial building or upgrading your home, getting this right is non-negotiable. In this no-fluff guide, we’ll show you exactly how to choose, measure, and install the right stair nosing for your project.

Choosing the Right Stair Nosing Profile

Before discussing materials, you must match the nosing profile to your existing stair edge and design goals. Forcing the wrong shape onto a step doesn’t just look bad—it creates a serious tripping hazard.

At NIUYUAN Trims, we manufacture five primary profiles to accommodate any architectural requirement:

1. Square Profile (Right-Angle)

The square profile is the modern industry standard. It features a crisp 90-degree drop that fits perfectly over right-angled stair edges. We highly recommend this shape for hard, contemporary surfaces like timber, concrete, and commercial LVT (Luxury Vinyl Tile). It delivers a clean, architectural finish.

2. No Overhang Profile (Flush Edge)

Also known as a minimalist or flush-mount edge, this profile drops straight down without protruding past the riser. Because it leaves zero lip to catch a shoe, it is the safest option for eliminating tripping hazards entirely. We see this profile heavily favored in modern commercial facilities and ADA-strict environments.

3. Half Round Profile (Bullnose)

Featuring a smooth, semi-circular edge, the half round profile wraps gently around the stair lip. It is the undisputed go-to standard for carpeted stairs. The rounded edge prevents the carpet from fraying at the high-wear pivot point and softens the overall look of residential staircases.

4. Full Round Profile

As a more traditional variation of the bullnose, the full round profile offers maximum wrap-around protection for the stair edge. It provides a classic, robust aesthetic. We often supply this profile for heritage building renovations or for steps built with softer core materials that need extra impact protection.

5. Pencil Round Profile

The pencil profile is the perfect middle ground. It looks exactly like a square profile but features a very slightly rounded (pencil-thick) top corner. We routinely specify the pencil profile for brittle flooring materials like ceramic tile or natural stone. That micro-curve prevents the sharp metal edge from chipping under heavy foot traffic.

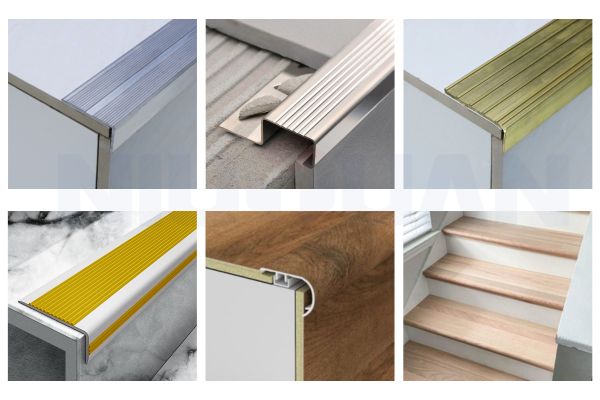

Best Materials for Stair Nosing

Not all traffic is equal. A rubber trim that works perfectly in a residential basement will be destroyed within weeks in an industrial facility.

Here is how the top materials stack up:

Material Type	Best Application	Durability	Key Advantage
Extruded Aluminum	Commercial buildings, schools, outdoor stairs	Very High	Rust-proof, highly customizable with different anti-slip inserts.
Stainless Steel / Brass	Luxury hotels, heavy-duty industrial zones	Premium	Extreme corrosion resistance and high-end aesthetic appeal.
Rubber / PVC (Vinyl)	Residential homes, light-traffic retail, indoor use	Medium	Budget-friendly, highly slip-resistant, and easy to cut.
Wood	Residential wooden staircases	Medium	Blends seamlessly with existing hardwood floors.

Why Aluminum is the Industry Standard

For 90% of commercial projects, extruded aluminum is the undisputed champion. It offers the perfect balance of weight, strength, and cost-effectiveness.

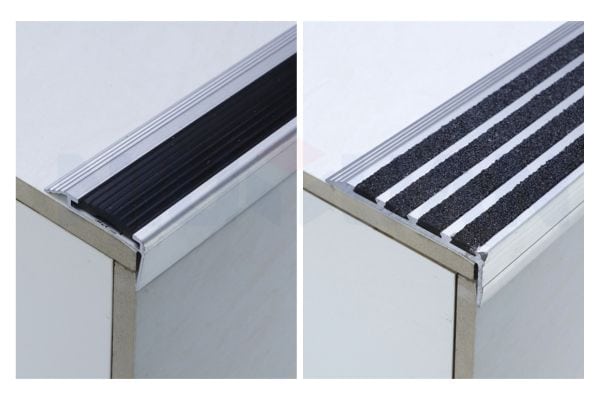

However, the aluminum profile itself is only half the equation. To maximize slip resistance, you must choose the right insert:

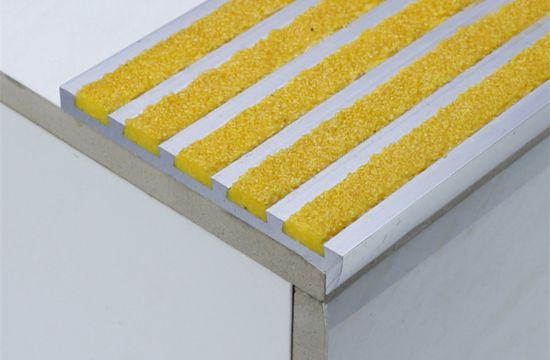

• Carborundum (Grit) Inserts: Choose this for outdoor areas, wet environments, or extreme high-traffic zones. It provides a sandpaper-like grip that rarely wears down.
• Ribbed PVC/Rubber Inserts: Ideal for indoor commercial spaces. They offer excellent traction and can be easily replaced if damaged, saving you from replacing the entire metal profile.

When to Upgrade to Brass or Stainless Steel

If you are specifying for a luxury hotel lobby or a corrosive industrial environment, skip the aluminum. Brass naturally develops an elegant patina over time, while stainless steel offers unmatched resistance to harsh cleaning chemicals and heavy impacts.

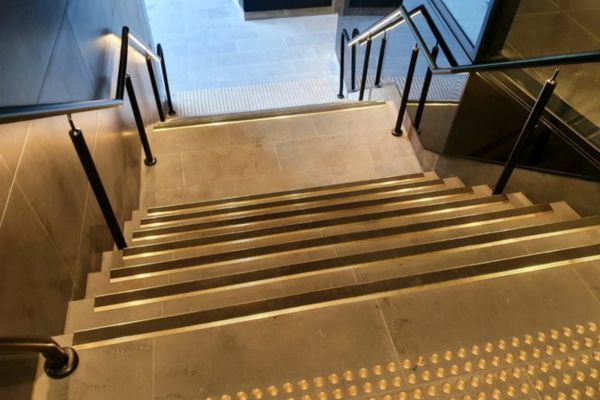

ADA Compliance and Safety Standards: What You Must Know

When supplying materials for commercial or public projects, aesthetics come second to safety. A single failed ADA (Americans with Disabilities Act) inspection can delay a project by weeks and cost thousands in rework. At Niuyuan Trims, we engineer our commercial stair nosings to meet and exceed strict building codes so you can pass inspections with confidence.

If you are specifying for a commercial environment, here are the non-negotiable rules your stair edges must follow:

1. The Rules of Dimensions and Overhang

Tripping hazards are the primary concern for inspectors. To comply with ADA and OSHA standards:

• Full-Width Coverage: The stair nosing must extend the full width of the stair tread. You cannot leave the edges exposed.
• Maximum Projection: The nosing cannot project more than 1.5 inches (38 mm) over the riser below it.
• Smooth Transitions: The transition from the tread to the nosing must be flush or feature a heavily beveled edge. Sudden bumps catch shoes and cause falls.

2. High Slip Resistance (Coefficient of Friction)

A stair edge is useless if it’s slippery when wet. Commercial environments require a high Coefficient of Friction (CoF). While standard rubber inserts work fine indoors, we strongly recommend our carborundum (grit) inserts for any outdoor stairs, emergency egress routes, or areas prone to moisture. They deliver the highest slip-resistance rating available on the market.

3. Visual Contrast and LRV (Light Reflectance Value)

This is the rule most contractors forget, leading to failed inspections. To assist visually impaired individuals in identifying the edge of a step, the stair nosing must visually contrast with the surrounding floor material.

• The 2-Inch Rule: There must be a visually contrasting strip that is at least 2 inches (51 mm) wide running along the leading edge of the step.
• The 30% LRV Difference: It’s not just about picking two different colors. Building codes require a minimum 30% difference in Light Reflectance Value (LRV) between the nosing and the stair tread. (For example, a bright yellow aluminum nosing on a dark grey concrete step).

*Need help matching LRV ratings for your next project? Contact our engineering team, and we will guide you to the fully compliant profile.

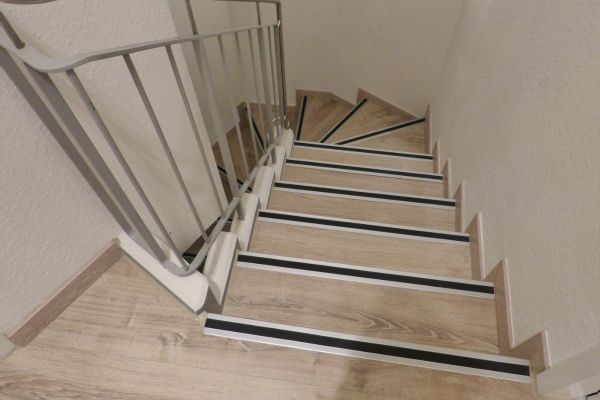

How to Install Retrofit Stair Nosing Like a Pro?

One of the biggest misconceptions in staircase renovation is that fixing a damaged edge requires tearing out the entire step. It doesn’t. Our surface-mounted (retrofit) stair nosings are designed to be installed directly over existing surfaces, saving you thousands in labor and material costs.

While we always recommend consulting with a professional installer for large commercial projects, the basic installation process for our profiles involves three critical steps:

Step 1: Surface Preparation and Repair

A stair nosing is only as strong as the surface it attaches to. Never install metal profiles over crumbling concrete or rotting wood. Remove any loose debris, old adhesive, or damaged flooring. If the stair edge is heavily chipped, use a high-quality leveling compound or wood filler to rebuild a solid, 90-degree base before proceeding.

Step 2: Measure and Cut

Precision is key. Measure the exact width of each individual step—do not assume all steps are identical, especially in older buildings. At Niuyuan Trims, we supply our aluminum profiles in standard lengths that can be easily cut on-site using a standard chop saw fitted with a non-ferrous metal blade.

Step 3: Secure the Nosing (Adhesive vs. Screws)

How you secure the profile depends heavily on the substrate and the expected foot traffic:

• Mechanical Fasteners (Screws): The most reliable method for commercial, high-traffic, and outdoor applications. We manufacture our profiles with pre-drilled, countersunk holes. Simply mark the holes on the stair, drill using a masonry or wood bit, insert anchors if necessary, and screw the profile down tightly.
• Construction Adhesive: Ideal for interior residential projects or situations where drilling into the substrate (like certain tiles or waterproofing membranes) isn’t an option. Apply a premium polyurethane construction adhesive in a zigzag pattern on the underside of the profile and press firmly into place.
• Expert Tip: For the ultimate bond in heavy-duty commercial zones, we recommend using both adhesive and mechanical fasteners.



Frequently Asked Questions

Still have questions about choosing or installing stair nosing? Here are the most common queries our engineering team receives from contractors and homeowners.

1. Can I replace just the anti-slip insert if it wears out?

Yes, absolutely. For our aluminum profiles featuring rubber, PVC, or carborundum inserts, the metal base is designed to last a lifetime. If the high-traction insert wears down over years of heavy traffic, you can simply pull it out and slide in a replacement strip without removing the entire aluminum nosing.

2. Can stair nosing be installed over existing carpet?

Yes. Our Half Round (Bullnose) profiles are specifically designed for this. They wrap around the stair edge, gripping the carpet tightly. This not only provides a safe, slip-resistant step but also prevents the carpet from fraying and tearing at its most vulnerable point.

3. What is the best stair nosing for outdoor use?

For outdoor environments exposed to rain, snow, or mud, we strongly advise against standard rubber. The best combination is an extruded aluminum profile paired with a carborundum (grit) insert. This pairing offers maximum rust resistance and the highest coefficient of friction (slip resistance) available.

4. Do you offer custom colors to match my flooring?

Yes. At Niuyuan Trims, we manufacture our own profiles, which allows us to offer extensive customization. We provide various anodized aluminum finishes (like matte black, silver, and bronze) and can match the color of the PVC/rubber inserts to coordinate seamlessly with your project’s design scheme.



Conclusion

As we’ve explored in this guide, stair nosing is far more than an architectural afterthought—it is the frontline defense against slip-and-fall liabilities and premature stair wear. Whether in a high-traffic commercial building or a residential home, the right profile protects both your users and your investment.

With building codes evolving and sustainable materials becoming the new standard, navigating stair design can be complex. We hope this guide empowers you to make informed, future-proof decisions for your next project.
