In today’s rapidly evolving lighting industry, LED aluminum profiles have emerged as a revolutionary component that has transformed how we implement and experience lighting solutions. These versatile elements not only enhance the aesthetic appeal of LED lighting installations but also significantly extend their lifespan through improved functionality.
This comprehensive guide delves into everything you need to know about LED aluminum profiles—from basic definitions to advanced installation techniques, from various types to market trends. Whether you’re a lighting designer, contractor, architect, or DIY enthusiast, this guide will equip you with the knowledge to make informed decisions about LED aluminum profile lighting solutions.
What Are LED Aluminum Profiles?
LED aluminum profiles, also known as LED channels or LED extrusions, are specialized aluminum housings designed to hold LED strip lights. These profiles serve multiple purposes: they protect LED strips from environmental factors, dissipate heat effectively, provide structural support, and enhance light diffusion for a more professional appearance.
Basic Components of LED Aluminum Profiles
- Main Structure: Typically made from high-grade aluminum alloy, the main body comes in various shapes and dimensions to accommodate different LED strip widths and installation requirements.
- Diffuser/Cover: Usually made of polycarbonate or acrylic materials, diffusers snap onto the profile to protect the LED strip while distributing light evenly and eliminating the “dotted light” effect.
- End Caps: These seal the ends of the profile, providing a finished look while preventing dust and debris from entering.
- Mounting Brackets/Clips: Used to secure the LED profile to surfaces such as walls, ceilings, or furniture.
Types of LED Aluminum Profiles
LED aluminum profiles come in various designs, each serving specific purposes and installation scenarios. Understanding these different types will help you select the most appropriate solution for your lighting needs.
Classification by Installation Method
1. Surface-Mounted LED Profiles
Surface-mounted led profiles are the most common type, designed to be installed directly onto flat surfaces such as walls, ceilings, or under cabinets. They offer simplicity in installation while providing excellent protection for LED strips.
Key features:
- Easy installation without cutting into surfaces
- Ideal for retrofitting existing spaces
- Available in various widths to accommodate different LED strip sizes
- Perfect for applications where recessing isn’t practical
2. Recessed LED Profiles
Recessed led profiles are designed to be installed flush with surfaces, creating a seamless and elegant lighting appearance. These profiles are embedded into materials such as drywall, wood, or tile, making the light source nearly invisible while maintaining the lighting effect.
Key features:
- Creates a clean, minimalist aesthetic with no visible hardware
- Produces a sophisticated floating light effect
- Ideal for modern architectural lighting
- Available in various depths to achieve different lighting effects
3. Corner LED Profiles
Corner led profiles are specifically designed for installation in 90-degree angles, such as wall corners or cabinet edges. They distribute light at an angle, illuminating multiple surfaces simultaneously.
Key features:
- Optimizes light distribution in corner spaces
- Creates continuous lines of light around corners
- Ideal for highlighting architectural features
- Perfect for cabinet lighting and retail displays
4. Suspended LED Profiles
Suspended led profiles hang from the ceiling via cables or mounting accessories, creating dramatic lighting effects. They are particularly useful in spaces with high ceilings or where you want to create a focal point.
Key features:
- Adjustable height for customized positioning
- Creates both functional and decorative lighting
- Ideal for office spaces, conference rooms, and commercial environments
- Makes a bold design statement

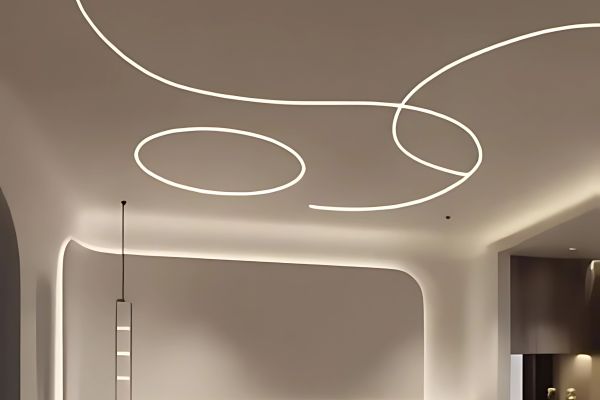

5. Flexible LED Profiles
Flexible or bendable led profiles allow you to create curved or circular lighting designs, perfect for highlighting curved architectural features or creating custom shapes.
Key features:
- Can be bent to follow curves and irregular shapes
- Enables creative lighting designs
- Perfect for custom installations and artistic lighting
- Adapts to non-linear surfaces
6. Waterproof LED Profiles
Designed with higher IP ratings (typically IP65 or IP67), these profiles protect LED strips in wet or outdoor environments, ensuring your lighting investment remains safe and reliable in harsh conditions.
Key features:
- Resistant to water, UV, and environmental conditions
- Sealed construction to prevent moisture ingress
- Ideal for bathrooms, kitchens, pool areas, and outdoor installations
- Provides all-weather lighting solutions
Classification by Shape
LED aluminum profiles are also categorized by their cross-sectional shape:
- U-shaped Profiles: The most common type, featuring a channel that houses the LED strip with a flat base and parallel sides.
- V-shaped Profiles: Designed for corner installations, with a 45° or 30° angle that directs light in two directions.
- Round (O-shaped) Profiles: Circular designs that provide 360° light distribution, ideal for decorative applications.
Benefits of Using LED Aluminum Profiles
LED aluminum profiles offer numerous advantages that make them essential components in professional lighting installations:
1. Enhanced Heat Dissipation
Aluminum is an excellent conductor of heat, which makes it ideal for drawing away excess heat generated by LED strips. Effective heat dissipation is crucial for extending the lifespan of LEDs, as excessive heat can significantly reduce their performance and longevity. By incorporating LED strips into aluminum profiles, you can improve heat management and potentially double the operational life of your lighting system.
2. Professional Aesthetic Appeal
LED aluminum profiles transform the raw appearance of LED strips into sleek, professional lighting fixtures. The diffusers eliminate visible LED dots, creating a smooth, continuous light line that enhances any interior design. This professional finish makes them suitable for high-end residential and commercial applications.
3. Protection Against Environmental Factors
LED strips are sensitive electronic components that need protection from dust, moisture, and physical damage. Aluminum profiles provide a protective housing that shields LED strips from these hazards, ensuring consistent performance and longevity. In wet environments, specialized waterproof profiles offer additional protection against moisture.
4. Improved Light Quality and Distribution
The diffusers used with LED aluminum profiles help to distribute light evenly, eliminating hotspots and harsh glare. This results in a softer, more visually comfortable lighting effect. Different types of diffusers (clear, frosted, or opal) can be used to achieve various lighting effects, from maximum brightness to soft, uniform illumination.
5. Flexible Design Options
With various shapes, sizes, and mounting options available, LED aluminum profiles offer remarkable design flexibility. They can be recessed into surfaces for a minimalist look, surface-mounted for easy installation, or suspended to create dramatic lighting effects. This versatility makes them suitable for countless lighting applications.
6. Energy Efficiency
When combined with LED technology, aluminum profiles create highly energy-efficient lighting systems. The reflective properties of aluminum can enhance light output, allowing for lower power consumption while maintaining desired brightness levels.
Applications of LED Aluminum Profiles
The versatility of LED aluminum profiles makes them suitable for a wide range of applications across residential, commercial, and industrial settings:
Residential Applications
- Kitchen Lighting: Under-cabinet lighting, toe kick lighting, and island accent lighting
- Bathroom Lighting: Mirror illumination, shower niches, and vanity lighting
- Living Spaces: Cove lighting, bookshelf illumination, and TV backlighting
- Staircases: Step lighting, handrail illumination, and wall grazing
- Bedrooms: Headboard accent lighting, wardrobe lighting, and indirect ceiling illumination
Commercial Applications
- Retail Environments: Display case lighting, shelf illumination, and feature highlighting
- Hospitality Settings: Bar underlighting, reception desk accents, and corridor guidance
- Office Spaces: Task lighting, architectural highlighting, and workspace illumination
- Restaurants: Ambient lighting, table accents, and aesthetic enhancements
- Exhibition Spaces: Display lighting, pathway guidance, and feature highlighting
Industrial and Specialty Applications
- Signage: Illuminated logos, edge-lit signs, and directional indicators
- Outdoor Settings: Pathway lighting, deck illumination, and garden feature highlighting
- Transportation: Vehicle interior lighting, passenger information displays
- Healthcare: Examination room lighting, corridor guidance, and ambient illumination
Installation Guide for LED Aluminum Profiles
Installing LED aluminum profiles requires careful planning and execution to achieve professional results. Here’s a step-by-step guide to help you through the process:
Preparation Before Installation
- Measure and Plan: Carefully measure the installation area and determine the exact lengths of profiles needed.
- Gather Tools: Collect necessary tools including a measuring tape, saw with aluminum-cutting blade, drill, screwdriver, level, and safety equipment.
- Prepare Power Connection: Ensure power sources are available and plan the wiring route for your LED strips.
Basic Installation Steps
For Surface-Mounted Profiles:
- Mark the mounting location using a pencil and level.
- Attach mounting clips at regular intervals along the marked line.
- Cut the aluminum profile to the desired length using a saw with an aluminum-cutting blade.
- Install the LED strip inside the profile, ensuring it sits flat and centered.
- Connect the LED strip to its power source and test before final assembly.
- Snap the diffuser onto the profile and attach end caps.
- Click the assembled profile into the mounting clips.
For Recessed Profiles:
- Mark the exact dimensions for the recess on your installation surface.
- Cut a groove matching the profile dimensions plus a small tolerance.
- Prepare the profile by cutting it to length and installing the LED strip.
- Apply a small amount of silicone or construction adhesive to the groove.
- Insert the profile into the groove, ensuring it sits flush with the surface.
- Connect power and test the lighting before adding the diffuser.
- Snap the diffuser into place and attach end caps.
Installation Tips for Best Results
- Always cut aluminum profiles with appropriate tools to ensure clean, straight cuts.
- Leave a small gap at ends for thermal expansion in longer installations.
- Consider the direction of light output when positioning the profile.
- For waterproof installations, use silicone sealant at joints and connection points.
- Plan your wiring path before installation to ensure clean, hidden connections.
- For suspended installations, ensure ceiling anchors are rated for the weight.
Choosing the Right LED Aluminum Profile
Selecting the appropriate LED aluminum profile involves considering several factors to ensure optimal performance and aesthetics:
Factors to Consider When Selecting Profiles
1. LED Strip Compatibility
The profile must accommodate your LED strip’s width and height. Standard LED strips are typically 10mm wide, but some high-density or RGB+W strips may be wider. Always check the internal dimensions of the profile against your LED strip specifications.
2. Installation Environment
Consider where the profile will be installed and choose accordingly:
- Indoor Dry Areas: Standard IP20 profiles are typically sufficient
- Kitchens/Bathrooms: Choose profiles with at least IP44 rating for moisture resistance
- Outdoor/Wet Areas: Select IP65 or higher waterproof profiles
3. Lighting Effect Desired
Different profiles create different lighting effects:
- Surface-mounted profiles: Create defined light lines
- Recessed profiles: Provide seamless integration with minimal visual impact
- Corner profiles: Illuminate two surfaces simultaneously
- Deep profiles with opaque sides: Create directional, glare-free lighting
4. Diffuser Options
Diffusers affect both aesthetics and light output:
- Clear diffusers: Maximum brightness with minimal light reduction (10-15%)
- Frosted/Opal diffusers: More even light distribution with moderate reduction (15-30%)
- Heavily frosted diffusers: Completely hide LED dots with significant light reduction (30-50%)
5. Mounting Requirements
Consider how the profile will be attached:
- Surface mounting: Requires clips or direct screwing
- Recessed installation: Requires cutting into the mounting surface
- Suspended mounting: Requires ceiling anchors and suspension cables
Common Selection Mistakes to Avoid
- Choosing a profile that’s too narrow for your LED strip
- Selecting inadequate IP rating for wet or outdoor environments
- Overlooking heat dissipation needs for high-power LED strips
- Ignoring the effect of diffusers on light output
- Not considering the profile’s visual impact in your overall design
Market Trends in LED Aluminum Profiles
The LED aluminum profile market continues to evolve rapidly, driven by technological advancements and changing consumer preferences. Current market data indicates that the global LED aluminum profile market was valued at approximately USD 1.2 billion in 2023 and is projected to reach USD 2.8 billion by 2032, growing at a CAGR of 9.5% over the forecast period.
Technological Trends
- Smart Integration: Profiles with built-in sensors and compatibility with smart home systems
- Advanced Heat Management: Innovative designs that optimize thermal conductivity and heat dissipation
- Miniaturization: Ultra-slim profiles for applications where space is limited
- Multi-functional Profiles: Systems that combine lighting with other functionalities like audio or data transmission
Design Trends
- Seamless Connections: Profiles designed for invisible joints in continuous installations
- Expanded Color Options: Beyond standard aluminum, profiles now come in black, white, and custom finishes
- Architectural Integration: Profiles specifically designed to blend with building materials
- Customizable Solutions: Made-to-order profiles for specific applications
Sustainability Trends
- Recyclable Materials: Focus on eco-friendly production and end-of-life recyclability
- Energy Efficiency: Profiles designed to maximize the efficacy of LED lighting
- Longevity: Durable designs that extend the useful life of lighting installations
- Reduced Material Usage: Optimized designs that maintain performance while using less aluminum
Maintenance and Troubleshooting
Proper maintenance of LED aluminum profile installations ensures optimal performance and longevity:
Regular Maintenance Tips
- Clean profiles and diffusers regularly with a soft, dry cloth to remove dust
- For stubborn dirt, use a slightly damp cloth with mild detergent, ensuring no moisture enters electrical components
- Check and tighten any loose mounting clips or brackets
- Inspect for signs of moisture ingress in outdoor or bathroom installations
- Verify that end caps remain securely in place
Common Issues and Solutions
| Problem | Possible Cause | Solution |
|---|---|---|
| Uneven light output | LED strip not properly seated in profile | Reposition the LED strip to ensure it sits flat and centered |
| Flickering lights | Poor power connection or unstable power supply | Check connections and ensure power supply is adequate for the LED load |
| Discolored diffuser | UV exposure or heat damage | Replace diffuser and consider a profile with better heat management |
| Condensation inside profile | Inadequate sealing in humid environment | Apply silicone sealant at joints and ensure proper IP-rated profile is used |
| Profile separating from mounting surface | Insufficient mounting points or adhesive failure | Add more mounting clips or use stronger adhesive appropriate for the surface |
Comparing LED Aluminum Profiles to Alternative Solutions
Understanding how LED aluminum profiles compare to other lighting methods helps in making informed decisions:
| Feature | LED Aluminum Profiles | Traditional Lighting | Bare LED Strips |
|---|---|---|---|
| Initial Cost | Medium-High | Low-Medium | Low |
| Energy Efficiency | High | Low-Medium | High |
| Lifespan | 30,000-50,000 hours | 1,000-10,000 hours | 15,000-30,000 hours |
| Aesthetic Quality | Professional, seamless | Varies, often bulky | Basic, visible diodes |
| Installation Complexity | Moderate | Simple to complex | Simple |
| Heat Management | Excellent | Poor-Average | Poor |
| Design Flexibility | Highly flexible | Limited | Moderately flexible |
| Protection Level | High | Varies | Low-None |
Conclusion
LED aluminum profiles represent a significant advancement in modern lighting technology, offering a perfect blend of functionality, aesthetics, and longevity. By providing essential protection for LED strips while enhancing their light quality and appearance, these profiles have become indispensable components in professional lighting installations.
The versatility of LED aluminum profiles makes them suitable for countless applications across residential, commercial, and industrial settings. From subtle recessed lighting that creates a floating light effect to bold suspended profiles that become architectural features in their own right, there’s a profile solution for virtually every lighting requirement.
If your business needs custom-made or purchased LED aluminum profiles, please feel free to contact us. We provide a one-stop service, from raw materials to packaging.
FAQ
Are LED aluminum profiles necessary for LED strip installations?
While not strictly necessary, LED aluminum profiles significantly enhance the performance, lifespan, and appearance of LED strip installations. They provide crucial heat dissipation, protection from environmental factors, and create a more professional, finished look.
Can I cut LED aluminum profiles to custom lengths?
Yes, most LED aluminum profiles can be cut using appropriate tools such as a miter saw with a blade designed for cutting aluminum. Always measure carefully and wear proper safety equipment when cutting.
What type of diffuser should I choose?
The choice of diffuser depends on your specific needs. Clear diffusers maximize brightness, frosted diffusers provide more even light distribution while reducing visibility of individual LED diodes, and opal diffusers create the most uniform light but with more light reduction.
Are LED aluminum profiles suitable for outdoor use?
Only profiles specifically rated for outdoor use (typically IP65 or higher) should be used in outdoor environments. These profiles feature additional sealing to protect against moisture and environmental factors.
How do I connect multiple profiles for a continuous lighting effect?
Most profile systems offer connectors designed to join sections while maintaining alignment. Alternatively, profiles can be precisely cut at 45° angles for corner connections or butted together with careful alignment for straight runs.
Do LED aluminum profiles work with all types of LED strips?
Different profiles are designed to accommodate different LED strip widths and heights. Always check the internal dimensions of the profile against your specific LED strip specifications before purchasing.
